उत्पाद विवरण:
|
| फीडर: | 50 पीसी यामाहा फीडर (वायवीय और बिजली फीडर) | ऑपरेशन सिस्टम: | विंडोज (पीसी और कीबोर्ड माउस के साथ आता है) |
|---|---|---|---|
| प्रत्ययी अंशांकन: | ऑटो कैलिब्रेट मार्क पॉइंट | बढ़ते सटीकता: | (XY) ±0.06 मिमी CPK≥1.0 |
| घटक ऊंचाई: | 12 मिमी | आयाम: | 1050 मिमी (एल) x1050 मिमी (डब्ल्यू) x885 मिमी (एच) |
| नोक: | 13 पीसी नोजल लाइब्रेरी के साथ ऑटो नोजल परिवर्तक | अधिकतम पीसीबी आकार: | 350mm(L)x270mm(W) (Standard); 350मिमी(एल)x270मिमी(डब्ल्यू) (मानक); 600mm(L)x350mm(W |
| शुद्ध वजन: | 200 किलो | बढ़ते गति: | 11500CPH(optimal); 11500CPH(इष्टतम); IPC9850:8850cph IPC9850:8850cph |

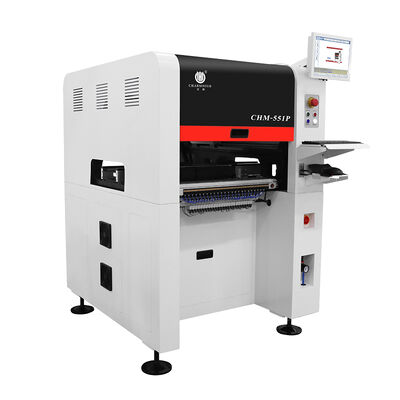

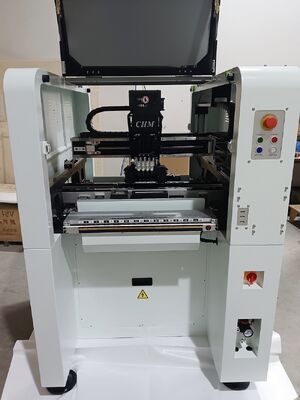

The CHM-551P is a next-generation 4-head SMT pick and place machine engineered for high-precision SMT assembly in electronics manufacturing and R&D applications. Built with a heavy-duty cast-iron frame, this industrial-grade machine delivers superior structural stability, reduced vibration, and significantly improved placement accuracy and speed.
| Dimensions | 1020mm(L) x 1180mm(W) x 1450mm(H) |
| Weight | 556kg |
| Power Supply | AC220V (50Hz, single phase) 1.5kw (average power 350w) |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 4 heads |
| Mounting Speed | 14,400 CPH (optimal) |
| Mounting Accuracy | (XY)±0.035mm; CPK≥1.0 |
| Component Height | 12mm |
| Component Type | 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) 0201 to larger component 30*30mm size |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 350mm(L)x270mm(W) (Standard); 600mm(L)x350mm(W) (Optional) |

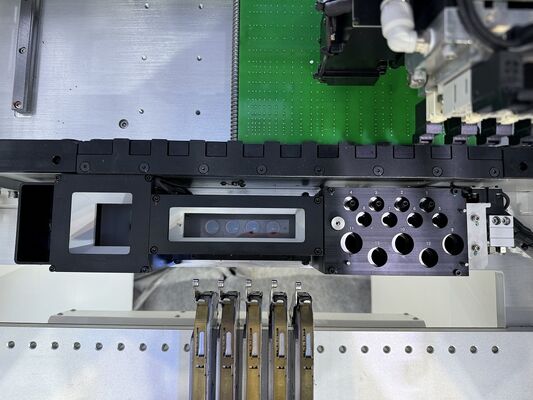

| Nozzle Change | Automatic nozzle change (13-hole nozzle library) |
| Control System | Linux system, equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by servo motors; adopting flexible S-curve acceleration and deceleration |
| Transmission System | Ball screw + linear guide |
| Feeding System | 50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Snapshot camerax4 (component size applicable: 14mm×14mm); IC camerax1 (component size applicable: 30mm×30mm); Mark camerax2 |
Works with universal standard Yamaha pneumatic feeders & electric feeders (purchased separately):

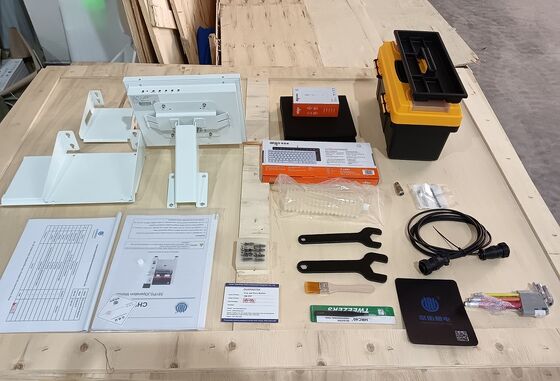

| Pick and place machine | 1 | Tweezer | 1 |
| Nozzles | 8 | Inner Hexagon Spanner | 1 |
| Tool box | 1 | Lubricating oil | 1 |
| Warranty Card | 1 | Filter | 4 |
| User Manual | 1 | Quick connector | 1 |
| Test Report | 1 | Mouse Pad | 1 |
| Brush | 1 | Power Cable | 1 |
With its cast-iron construction, vertical space-saving design, and enhanced accuracy, the CHM-551P offers industrial-grade SMT placement performance at a competitive price point. 2-4 day lead time with in-stock availability.
The pick and place machine is complete set with all accessories included in the package, machine ready to use!
The only thing you need to prepare is an external air compressor (supplying air for pneumatic feeders).
Please purchase this machine with confidence.
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply with guarantee.
We provide online Q/A and troubleshooting support and technical advice service.
We provide one to one after-sale service. Each machine 100% tested well before ship out.
