उत्पाद विवरण:
|
| आयाम: | 1600 (L) X1688 (W) X1560 (H) | सिर: | 20-हेड (10-हेड* 2 हथियार); 31-होल नोजल लाइब्रेरी के साथ |
|---|---|---|---|
| पीसीबी आकार: | सिंगल-ट्रैक कन्वेयर: 600*50-450 मिमी; डुअल-ट्रैक कन्वेयर: 600*50-250 मिमी | रफ़्तार: | 82000CPH (इष्टतम) |
| फीडर: | 100pcs nxt इलेक्ट्रिक फीडर का समर्थन करें | बढ़ते सटीकता: | (Xy) ± 40μM CPK .1.0 |
| अवयव: | 01005, 0201,0402, -5050, SOP/QFP/QFN/BGA/LED .. | शुद्ध वजन: | 2000 किलो |
| झगड़ा: | फ्लाइंग कैमरा: 10pcs*2 हथियार (घटक आकार 16*16 मिमी); मार्क कैमरा: 2pcs*2 हथियार | पीसीबी वितरण: | रेल के साथ 3 टुकड़े ऑटो डिलीवरी, चौड़ाई को सॉफ्टवेयर द्वारा समायोजित किया जा सकता है |
| बिजली की आपूर्ति: | AC380V (50Hz, 3 चरण) 6kW | उच्चतम घटक: | 12 मिमी |
| प्रमुखता देना: | 20-head SMT pick and place machine,dual-arm PCB assembly machine,high-speed TS20 placement machine |
||

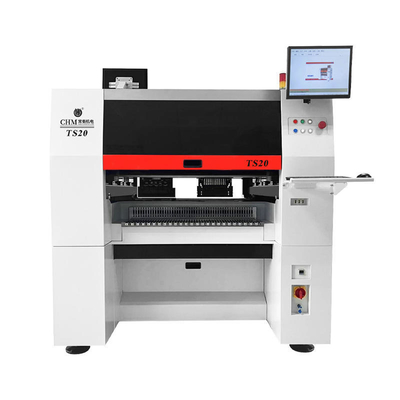

Dual-arm Dual-lane high speed high precision 20-head SMT Pick and Place Machine TS20
Smart software Full In-line Large SMT production line
1. Introduction
Double the Arms, Double the Lanes, Double the Output.
This TS20 adopts the integrated structure of precision machinery and uses Charmhigh independent research and development results.
It has the characteristics of high precision, high stability, complete functions and convenient use.
Unleash unparalleled productivity with our advanced dual-arm technology operating on two independent lanes.
Experience precision at speed and achieve a superior return on investment.
The TS20 is built to dominate your high-volume SMT production challenges.
2. Machine features
1. Thermal Compensation
2. Mounting Range: The minimum: 01005/maximum:16mm(L)×16mm(W)
3. Built-in Vacuum Pump
4. Automatic nozzle change(31 sets nozzle library)
5. Dual Lane Shuttle Conveyor
6. 10 head * 2 gantry(front and rear arms)
7. 100 NXT8mm feeder stacks
8. Y-axis gantry integral casting
