उत्पाद विवरण:
|
| Tape feeder: | 58pcs (left 29 + right 29) width 8/12/16/24mm | PCB max size: | 345mm(L)×355mm(W) |
|---|---|---|---|
| Speed: | 3000 CPH (with vision camera) | Head: | 2 heads |
| Max height of component: | 5mm highest component | System: | Embedded Linux system |
| Vibration feeder: | for tube IC | Demension: | 1320mm(L)×705mm(W)×335mm(H) |
| प्रमुखता देना: | benchtop SMT pick and place machine,SMT pick and place machine with 58 feeders,SMT pick and place machine with vision cameras |
||

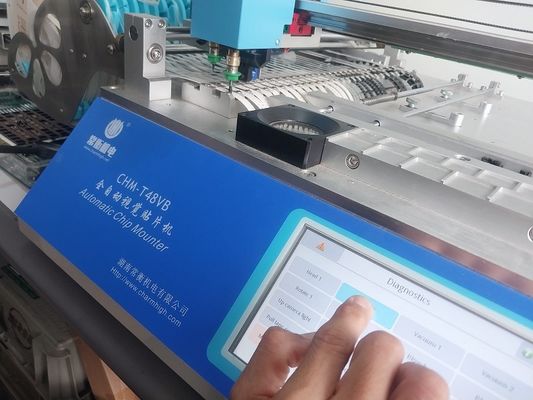

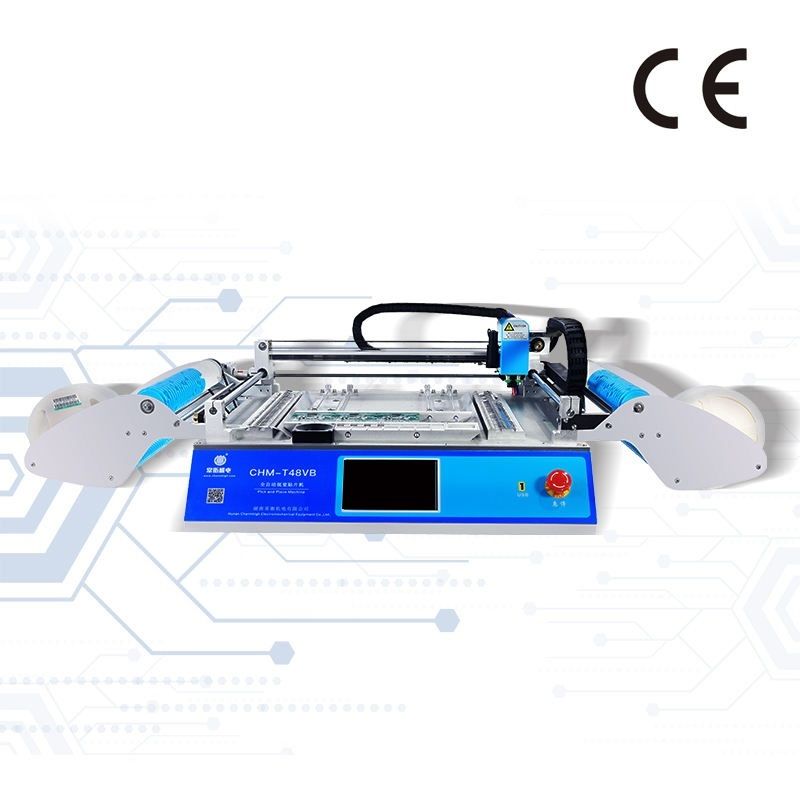

The CHMT48VB is an upgraded version of the CHMT48VA, featuring dual side feeders with a total of 58 positions (29 left + 29 right). This all-in-one machine requires no additional parts and is ready for immediate use upon delivery.
This benchtop SMT pick and place machine is ideal for R&D, small batch production, prototyping, education, and startup businesses. It supports a wide range of components from 0402 size up to 22×22mm ICs.
| Model | CHM-T48VB |
|---|---|
| PCB Area | 10mm × 10mm - 355mm × 355mm |
| X/Y Axis Travel | 420 × 460mm |
| Placement Heads | 2 |
| Feeders | 58 total (44×8mm, 8×12mm, 4×16mm, 2×24mm, 14×IC stack) |
| Vision System | Dual cameras (up & down) |
| Mounting Speed | 5000 CPH (vision off), 3000 CPH (vision on) |
| Mounting Precision | ±0.025mm |

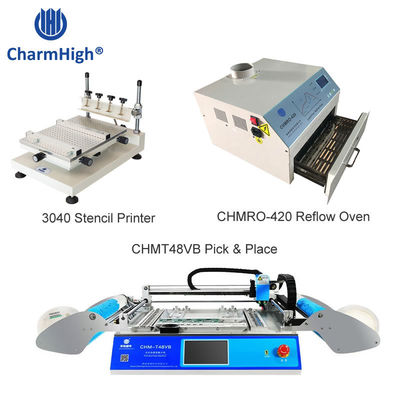

High precision stencil printer 3040 + CHMT48VB pick and place machine + Reflow oven 420:
CHMT48VB: Standard Package
CHMT48VB with Vibration Feeder: Complete Package
The complete machine comes with a 1-year warranty from purchase date and lifetime service support.
Each machine is 100% tested before shipment.
